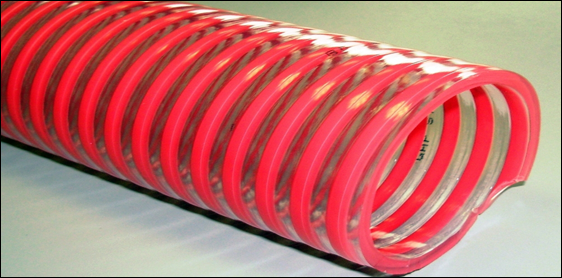

Eximo Liquiflex the one hose for all liquid transfer needs.

Liquiflex has high resistance to Internal pressure, which means one hose for numerous diverse applications including a number in the food and beverage industry. Crush Resistant it can withstand extremes of temperature, hot and cold. Liquiflex is clear food grade PVC with a red anti-shock PVC Reinforced Helix.



Technical Data

Further diameters avaliable upon request. Technical data are based on +20°C

Code ID/ mm  OD/ mm Weight
kg/ m
Bend.Radius
mm
max.Work.
Pressure bar
max.Vacuum
bar
Liquiflex035 35 43.0 0.60 225 9.00
0.90
Liquiflex038 38 48.6 0.53 260 9.00 0.90
Liquiflex040 40 48.6 0.76 260 9.00
0.90
Liquiflex050 50 59.0 1.05 270 8.00
0.90
Liquiflex060 60 69.4 1.24 300 8.00
0.85
Liquiflex063 63 72.4 1.02 300 8.00 0.85
Liquiflex070 70 80.2 1.65 380 7.00
0.85
Liquiflex080 80 92.0 1.88 400 7.00
0.85
Liquiflex090 90 103.0 2.20 450 5.00
0.85
Liquiflex100 100 114.0 2.80 500 4.00
0.85
Liquiflex120 120 136.0 3.60 600 4.00
0.80
Liquiflex150 150 168.0 5.13 750 3.00
0.80

Subscribe for a Complete Catalogue

Material:
Soft- PVC wall and rigid PVC helix.

Color:
Transparent wall, red helix

Temperature:
0°C up to + 60°C

Applications:
Delivery and suction of liquids for food industries, milk, fruit juices, water, wine, beer, alcoholic
beverages (up to max. 50% vol.)

Characteristics:
Smooth inside, transparent wall, food grade PVC according to actual EU regulations and phthalate free, strong construction, good flexibility.

Other:
LiquiFlex SAF SPH: good flexibility even at low temperatures
LiquiFlex Super: heavy construction
