TempVent Antistatic

TempVent can used for air conditioning and ventilation in heavy duty environments and for the cooling and heating of tent. Its light weight flexible PVC construction also makes it useful for suction of dust and solvent fumes.

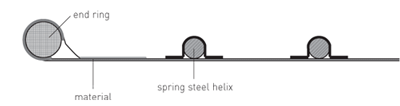

Light weight flexible PVC ventilation ducting



Technical Data

Further diameters avaliable upon request. Technical data are based on +20°C

Product Code Weight
kg/m
Bend Rad
mm
Max work
Pressure bar
Max
Vacuum bar
TEMPVENT305CB10 1.440 210 0.350 0.03
TEMPVENT305CB5 1.440 210 0.350 0.03
TEMPVENT305EB10 1.440 210 0.350 0.03
TEMPVENT305EB5 1.440 210 0.350 0.03
TEMPVENT456CB10 2.675 315 0.225 0.03
TEMPVENT456CB5 2.675 315 0.225 0.03
TEMPVENT456EB10 2.675 315 0.225 0.03
TEMPVENT456EB5 2.675 315 0.225 0.03
TEMPVENT508CB10 3.300 350 0.200 0.03
TEMPVENT508CB5 3.300 350 0.200 0.03
TEMPVENT508EB10 3.300 350 0.200 0.03
TEMPVENT508EB5 3.300 350 0.200 0.03
